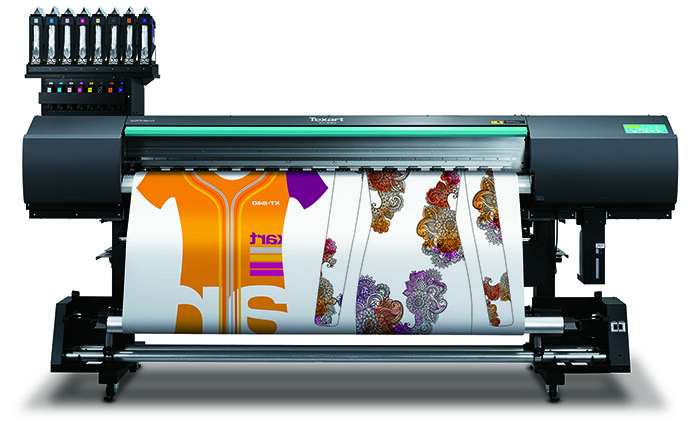

Developed specifically for dye-sublimation transfer printing, e Texart XT-640 is an unstoppable machine that delivers outstanding print quality on long print runs, day-after-day. By combining Roland DG reliability with the latest print technology, users can quickly and effortlessly create high-volume sportswear, fashion, soft signage, interior decoration, promotional merchandise and much more.
TexArt XT-640

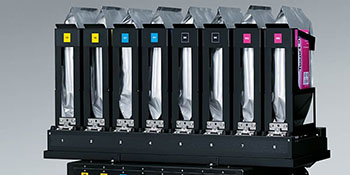

In 4-color (CMYK) high-speed print mode, the XT-640 is fast and efficient, producing fine details and deep color contrast. In an 8-color configuration (CMYK+LcLmOrVi / CMYK+OrViFpFy), the XT-640 delivers an extremely wide color gamut with Orange, Violet, Light Cyan, Light Magenta, Fluorescent Pink and Fluorescent Yellow inks. In 8-color set-up, users have the ability to reproduce Pantone Solid Coated colors as well as having a vast choice of vibrant fluorescents and soft pastel shades.
Choose from 375 predefined colors in the Roland DG Fluor Color Library with new Fluorescent Pink (Fp) and Fluorescent Yellow (Fy) SBL3 Texart inks. Combine Fp+Fy with CMYKOrVi to incorporate brilliant fluorescent colors into expressive sportswear, apparel, soft signage and décor.

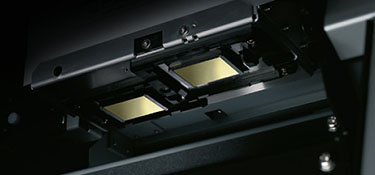

The XT-640 Dye Sublimation Printer features dual-staggered print heads to maximize productivity. Each Piezo inkjet print head has 8-channels containing 180 nozzles with seven different dot sizes. This allows the XT-640 to achieve smoother gradations, finer details and richer color density for photographic quality graphics and high-resolution vector output.

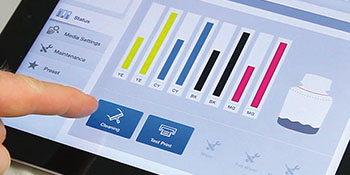

Roland DG Printer Assist (RPA) is a free application available at the iTunes App Store that offers easy management of the XT-640 by accessing its control panel directly from an iPad. With RPA users can remotely control the XT-640 and view print status, run machine calibration and perform maintenance. In addition, RPA features multiple printer management from one iPad.
Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.
Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 10.2 to 64 in. (259 to 1,625 mm) | |
| Thickness | Maximum 39 mil (1.0 mm) | ||
| Roll outer diameter | Maximum 8.3 in. (210 mm) | ||
| Roll weight | Maximum 88 lbs. (40 kg) | ||
| Core diameter *1 | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||
| Printing width *2 |
Maximum 63.6 in. (1,615 mm) |
||
| Maximum speed (4-color 360x360 print mode) |
1,098 ft2/hr (102 m2/hr) |
||
| Ink |
Types | Texart Ink (1 Liter pouches) |
|
| Colors |
4-color (CMYK) and 8-color (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options)
Available colors: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow |
||
| Printing resolution (dots per inch) | Maximum 1,440 dpi |
||
| Distance accuracy *3 | Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater | ||
| Dryer *4 | Setting range for the preset temperature: 30 to 55°C (86 to 131°F) | ||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 to 120V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240V ±10%, 2.8A, 50/60 Hz | ||
| Power consumption | During operation | Approx. 750W | |
| Sleep mode | Approx. 70 W | ||
| Acoustic noise level | During operation | 62 dB (A) or less | |
| During standby | 45 dB (A) or less | ||
| Dimensions (with stand)) | 111.7 (W) x 32.7 (D) x 65 (H) in. (2,835(W) x 830(D) x 1,650 (H) mm) |
||
| Weight (with stand) | 471.8 lb. (214 kg) | ||
| Environment | Power on | Temperature: 18 to 25°C (64.4 to 77°F) Humidity: 35 to 65%RH (non-condensing) |
|
| Power off | Temperature: 15 to 30°C (59 to 86°F) Humidity: 20 to 80%RH (noncondensing) |
||
| Included items | Exclusive stands, power cord, media clamps, media holder, replacement blade for separating knife, Software RIP, User's Manual, etc. | ||
