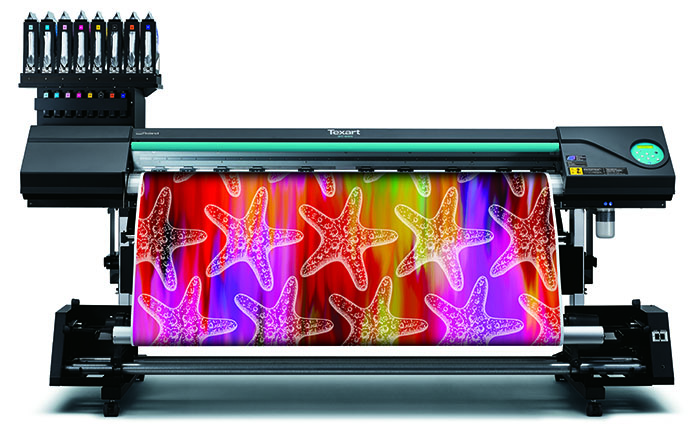

Developed specifically for dye-sublimation transfer printing, e Texart XT-640 is an unstoppable machine that delivers outstanding print quality on long print runs, day-after-day. By combining Roland DG reliability with the latest print technology, users can quickly and effortlessly create high-volume sportswear, fashion, soft signage, interior decoration, promotional merchandise and much more.
TexArt RT-640

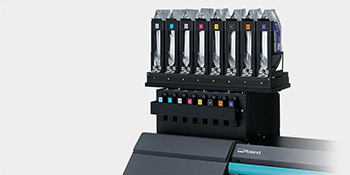

In 4-color (CMYK) high-speed print mode, the XT-640 is fast and efficient, producing fine details and deep color contrast. In an 8-color configuration (CMYK+LcLmOrVi / CMYK+OrViFpFy), the XT-640 delivers an extremely wide color gamut with Orange, Violet, Light Cyan, Light Magenta, Fluorescent Pink and Fluorescent Yellow inks. In 8-color set-up, users have the ability to reproduce Pantone Solid Coated colors as well as having a vast choice of vibrant fluorescents and soft pastel shades.
The RT-640 includes a feed adjustment function that combines with a TU3 take-up attachment to ensure a stable and uninterrupted production even in high-speed modes. The TU3 take-up system includes a front-mounted roller and tension controlled take-up unit for smooth media feeding and tracking. Its main features include a roll media support that holds 110 lbs. (50kg), a dancer roller for effortless take-up, auto media release and auto media rewind, and a rotating shaft face to decrease resistance and ensure flawless feeding accuracy.

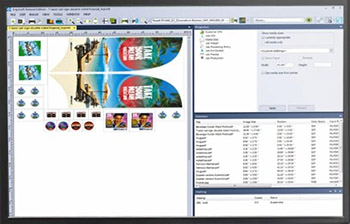

ErgoSoft is premium RIP software that's used extensively in the textile and dye-sublimation industry. ErgoSoft Roland DG Edition is specially designed for use with the RT-640 in 4-color and 8-color modes and features the following:
Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.
Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.
Printing technology | Piezoelectric inkjet | |
Media |
Width | 10.2 to 64 in. (259 to 1,625 mm) |
Thickness | Maximum 39 mil (1.0 mm) | |
Roll outer diameter | Maximum 8.3 in. (210 mm) | |
Roll weight | Maximum 88 lbs. (40 kg) | |
Core diameter 1 | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
Printing width 2 | Maximum 63.6 in. (1,615 mm) | |
Maximum speed (4-color 360x360 print mode) |
522 ft2/hr (48.5 m2/hr) |
|
Ink pouches | Types | Exclusive sublimation ink pouch |
Colors |
4-color (CMYK) and 8-color (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options) Available colors: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow | |
Printing resolution (dots per inch) | Maximum 1,440 dpi | |
Distance accuracy 3 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | |
Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | |
Power-saving function | Automatic sleep feature | |
Power requirements | AC 100 to 240 V ±10%, 1.5 A, 50/60 Hz | |
Power consumption | During operation | Approx. 140 W |
Sleep mode | Approx. 31 W | |
Acoustic noise level | During operation | 62 dB (A) or less |
During standby | 49 dB (A) or less | |
Dimensions (with stand) | 104.4 (W) x 31.3 (D) x 63 (H) in. (2,650 mm (W) x 795 mm (D) x 1,600 mm (H)) | |
Weight (with stand) | 353 lbs (160 kg) | |
Environment |
Power on | Temperature: 64.4 to 77° F (18 to 25° C), humidity: 35 to 65% RH (non-condensing) |
Power off | Temperature: 59 to 86° F (15 to 30° C), humidity: 20 to 80% RH (non-condensing) | |
Accessories | Exclusive stands, power cord, media clamps, media holder, replace- ment blades for separating knife, User's Manual, etc. |
