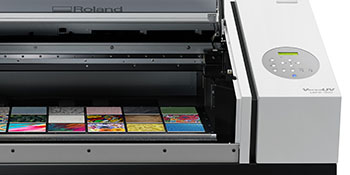

With optimized ease and efficiency, you can print directly onto accessories, giftware, ceramics, and countless other popular products. Create unique, desirable and highly-profitable custom items with the VersaUV flatbed UV printers offers brilliant color results. Create realistic textures and stylish embossed effects onto a huge range of items and substrates.
Maximum material sizes:

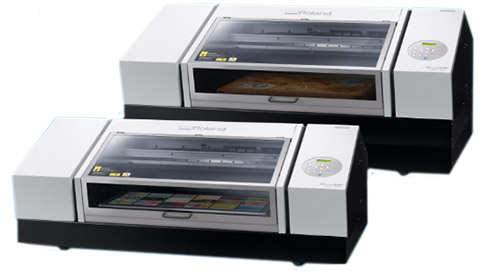

LEF2-300 - 14.2" x 31.5" x 3.94"
LEF2-300-D - 14.2" x 31.5" x 7.87"

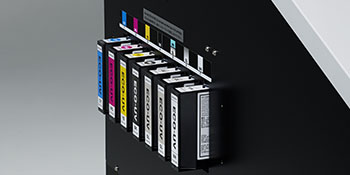

Available in CMYK, White and Gloss, ECO-UV ink offers the following benefits:

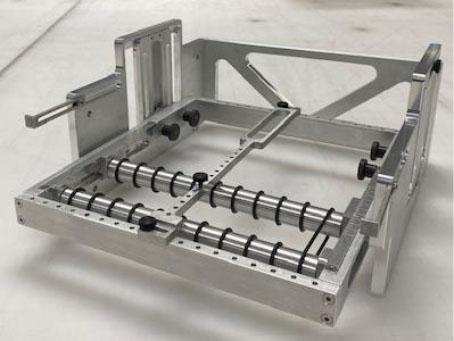

New Rotary rack allows you to print onto round and cylindrical objects with precision and ease.
The LEF2 feature energy-saving LED lamps that last up to ten times longer than conventional UV lamps. These can be instantly switched on and off for a true on-demand operation that doesn’t require a long warm-up time. In addition, the LEF has an automatic low-power mode that is switched on when not used after an extended period..
VersaUV LEF2 series technology makes it easy and efficient to print stunning, premium-quality photographs, graphics and finely-detailed text onto almost anything. Instantly curable Roland DG ECO-UV inks – including white and gloss options- are compatible with a jaw-dropping range of hard and soft materials, such as PVC and plastics, acrylic, canvas, wood, leather, aluminium, metals, glass.
Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.
Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.
| Model | LEF2-300D | LEF2-300 | |
|---|---|---|---|
| Printing method | Piezo ink-jet method | ||
| Attachable objects to be printed on | Width | Max. 31.5 in. (800 mm) | |
| Length | Max. 14.2 in. (360 mm) | ||
| Thickness | Max. 7.87 in. (200 mm)* | Max. 3.94 in. (100 mm) | |
| Weight | Max. 18 lb. (8 kg) (When using an additional table: Max. 2 kg (4.4 lb.)) |
Max. 18 lb. (8 kg) | |
| Maximum printing width / printing length | Max. 30.3 (width) × 13 (length) in. (770 × 330 mm) | ||
| Ink | Type | ECO-UV (EUV ver2) 220 ml cartridge, ECO-UV (EUV4) 500 ml cartridge (White ink not available in 500ml cartridges) |
|
| Colors | Six colors (cyan, magenta, yellow, black, white, and gloss × 2) Six colors (cyan, magenta, yellow, black, white, and gloss) and primer |
||
| Ink-curing unit | Built-in UV-LED lamp | ||
| Print resolution | Max. 1440 dpi | ||
| Distance accuracy* | ±11.8 mil (±0.3 mm) or ±0.3% of the specified distance, whichever is greater | ||
| Position reproducibility * | ±7.9 mil (±0.2 mm) or ±0.1% of the specified distance, whichever is greater | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC100 to 240 V ± 10%, 2.1 A, 50/60 Hz | ||
| Power consumption | During operation | Approx. 178 W | |
| Sleep mode | Approx. 18 W | ||
| Acoustic noise level | During operation | 60 dB (A) or less | |
| During standby | 49 dB (A) or less | ||
| Outer dimensions | 61.4 [W] × 37.6 [D] × 26.6 [H] in. (1,560 (W) × 955 (D) × 676 (H) mm) [When the ink-cartridge tray is attached;73.5 × 37.6 × 26.6 in. ( 1,866 × 955 × 676 mm)] | 61.4 [W] × 37.6 [D] × 22.7 [H] in.(1,560 (W) × 955 (D) × 576 (H) mm) [ When the ink-cartridge tray is attached; 73.5 × 37.6 × 22.7 in. (1,866 × 955 × 576 mm) ] |
|
| Weight | 366 lb. (166 kg) | 317.5 lb. (144 kg) | |
| Environment | During operation | Temperature: 68 to 90°F (20 to 32°C) (72°F (22°C) or higher recommended), Humidity: 35 to 80% RH (no condensation) | |
| Not operating | Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation) |
||
| Included items | Power cord, software RIP, cleaning liquid, drain bottle, manuals, etc. | ||
